825440-5
Manufacturer:
TE Connectivity
Mfr.Part #:
825440-5
Datasheet:
Description:

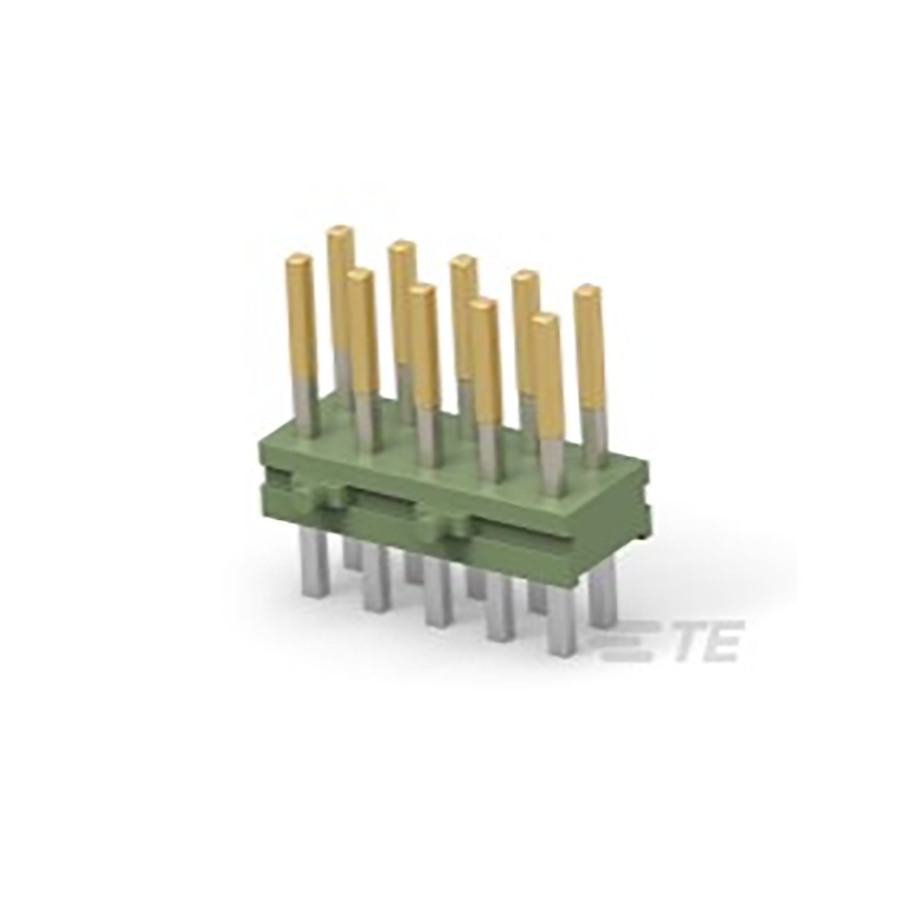

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 10 |
| Packaging | Bulk |
| Depth | 6.15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 3.19786 mm |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| ELV | Compliant |
| Number of Poles | 5 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Style | Pin |
| Housing Color | Green, Black |
| Contact Mating Length | 6.7056 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 62 µm |
| Plating Thickness | 700 nm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 6.7 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.2 mm |
Stock: 2067
Distributors
pcbx
pcbxUnit Price$0.96350
Ext.Price$0.96350
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96350 | $0.96350 |
| 10 | $0.81987 | $8.19870 |
| 25 | $0.77250 | $19.31250 |
| 50 | $0.72787 | $36.39350 |
| 100 | $0.68582 | $68.58200 |
| 300 | $0.64620 | $193.86000 |
| 500 | $0.60886 | $304.43000 |
| 1000 | $0.57366 | $573.66000 |
